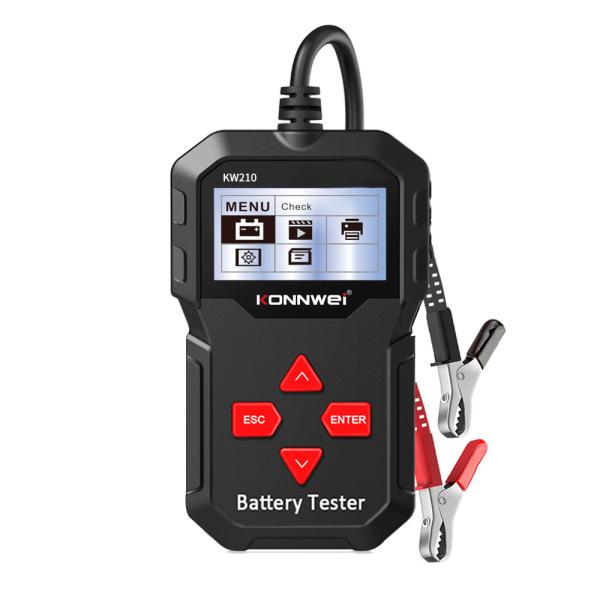

KW210 battery tester 100-2000 CCA load tester for car truck boat cranking charging test BT100
Description
KONNWEI KW210 12V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status. It provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.
Test results display in both text and graphing, but the real-time battery voltage showing in a waveform. With an intelligent 2.4” Backlit and STM-32 main chip, reading access is practical and rapid! Lifetime update service is supported by KONNWEI BTlink app.
We also added a printing function in KW210 which means you don't need to test the battery again and again.
[DATA READINGS]
The KONNWEI KW210 12V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.
[ACCURATE MEASUREMENTS]
This professional automotive battery tester provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.
Advantages
1. 2.0 inch screen,easy to use
2. Apply for all 12V car battery include battery from gasoline, diesel, hybrid electric vehicles, motorcycle batteries , and emergency batteries.
3. Lifetime free update & Data printing
4. Multi-language:English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese
5.High quility chip make your diagnosis much faster, many date is showed immediately.
Functions
1)Measure Standard, CCa 100-2000, BCI 100-2000, CA 100-2000, MCA 100-2000, JIS 26A17-245H52,DIN 100-1400, IEC100-1400, EN 100-2000,SAE 100-2000,GB100-1400, System Voltage 12Volts, Input Voltage Range 8V-16V, Power Requirements are not internal battry required, Power on when hooked up during testing.
2)System voltage 12V
3)Test result with "Good" , "Recharge" or "Replace"
4)Capacity Cold Cranking Amps(CCA),DIN, EN and IEC information relative to battery rating.Internal resistance value(mΩ) and Life in percentage(%)
5)Cranking systtem and Charging system
6)Record and re-play battery data, Life-time free update service
7)Battery test, cranking test, charging test and other additional functions
8)The major battery standards CA, CCA, BCL, MCA, JIS, SAE, EN, GB, DIN and IEC are supported
9)Multi-language: English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese
Specification
| Product name | KW210 vehicle battery tester |
| Dimension | 12.7*7.8*2.0 cm |
| Screen Size | 2.4 Inch LCD color screen |
| Material | Plastic |
| Working Temperature | 0 - 60℃ (32-140 ℉) |
| Storage Temperature | -20 - 70℃ (-4 - 158℉) |
| Usage | Testing battery's situation |
Applicable Battery
all 12V car battery include battery from gasoline, diesel, hybrid electric vehicles, motorcycle batteries , and emergency batteries.
Support languages
Multi-language :English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese
Package list
1 x KW210 vehicle battery tester
1 x User Manual
1 x USB Cable
