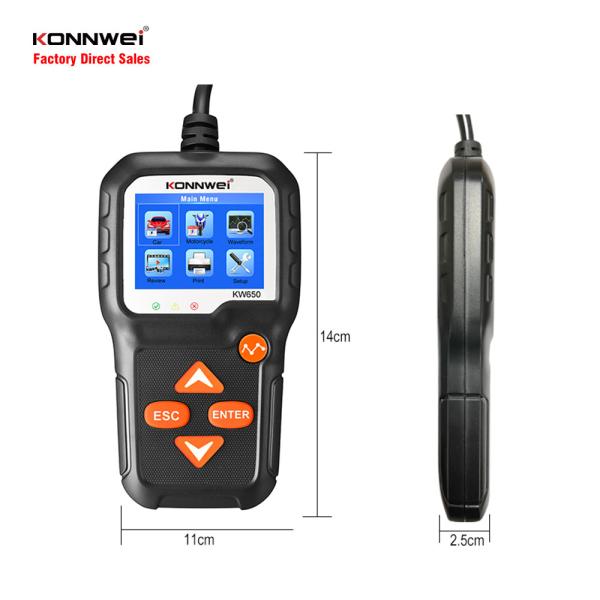

KW650 Battery diagnostic tool for all 6-16V vehicle motorcycle multi languages TFT color screen
Product Name: KW650
KONNWEI KW650 is the newest battery analyzer upgraded from the old classic tester KW650, aiming to check battery health fast and accurately, as well as check the alternator working status. It's a professional vehicle diagnostic tool for checking your battery system issues by using the graphing voltage monitoring tool, with its color screen and unique pattern design, lifetime free update service, the KONNWEI KW650 is a perfect battery testing tool for your job and the family.
Key Parameter:
| Item Type | Diagnostic Tools BatteryTester |
| IC chip | SMT32F103C8T6 Chip solution |
| Function1 | Battery test&Cranking test&Charging test |
| Color | Black only |
| Display | 2.4 inch LCD colorful screen |
| Language | 12 international languages |
| Support system | XP WIN7 WIN8 WIN10 |
| Feature | Support free system upgrade and p[rint data on PC |
| Power requirement | No internal batteries required |
| Material | ABS housing |
Function :
System voltage 6-16 Volts and Voltage test in waveform
Test Result Good, Recharge or Replace
Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (mΩ) and Life in percentage (%)
Cranking system and Charging system
Record and re-play battery data, Life-time free update service

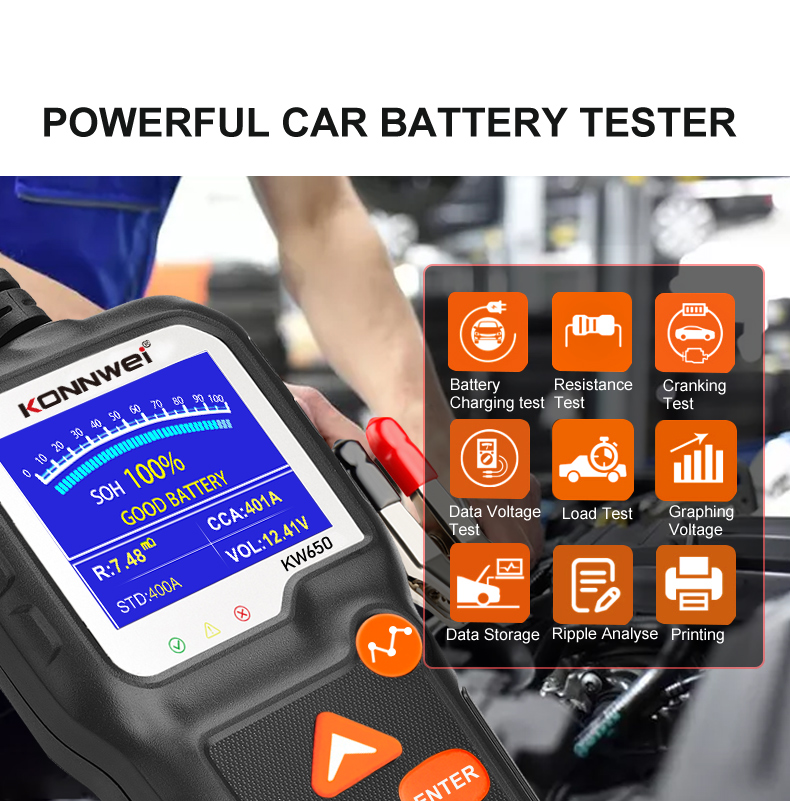

Battery test, cranking test, charging test and other additional functions.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,DIN and IEC are supported
13 Languages: Chinese, English, German, French, Japanese, Korean, Dutch, Russian, Spanish, Italian, Portuguese, Polish, Persian.
Support battery type:
Regular flooded battery, AGM flat plate battery, AGM spiral battery, GEL and EFB battery in the future after updating.
Battery Standard:
CCA:100-2000 / BCI:100-2000 / CA:100-2000 / MCA:100-2000.
JIS:26A17-245H52 / DIN:100-1400 / IEC:100-1400 / EN:100-2000 /SAE:100-2000.
Specification:
System Voltage: 6-16 Volts.
Input Voltage Range: 6V-16V.
No internal batteries required.
Operating Temperatuer: 0℃-50℃.
Storage Temperature: -20℃-70℃.
Package includes:
1*KONNWEI KW650 Auto Diagnostic Scanner
1*Mini USB cable
1*User’s Manual
1*packing box
1*nylon bag
