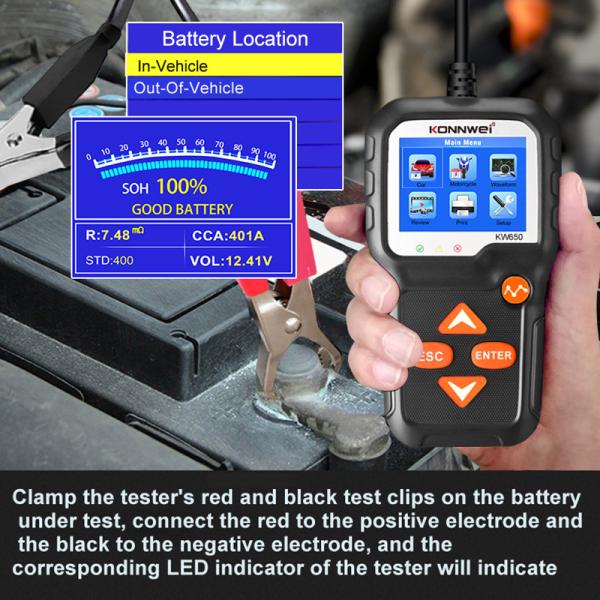

KONNWEI KW650 6-16V Car Motorcycle Battery System Analyzer
Product description:
KONNWEI KW650 6-16V car battery analyzer can precisely analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.
It provides accurate results, calculates the cold cranking capability of the battery and the aging extent, KW650 will be your good assistant to maintain your car battery circumstance.
Test results display in both text and graphing, but the real-time battery voltage showing in a waveform.
With an intelligent 2.4” LCD screen and STM-32 main chip, reading access is practical and rapid!
Lifetime update service is supported by KONNWEI BTlink app.
KW650 Prints out data to PC:
1. After installing the "uplink" program on PC, connect the scanner to PC with USB cable. (No need to press any buttons)
2. Launch the program"uplink" , Select "Print" option., Operation on the scanner: go to the main menu, select " Print Data"; Select the data option that you want to print to PC,
3. After selecting the "print data", the data stream that storage in the scanner will be sent to PC software, you may modify them before printing them out from PC's printer.
Key Parameter:
| Item Type | Diagnostic Tools BatteryTester |
| IC chip | SMT32F103C8T6 Chip solution |
| Function1 | Battery test&Cranking test&Charging test |
| Display | 2.4 inch LCD colorful screen |
| Language | 12 international languages |
| Support system | XP WIN7 WIN8 WIN10 |
| Feature | Support free system upgrade and p[rint data on PC |
| Power requirement | No internal batteries required |

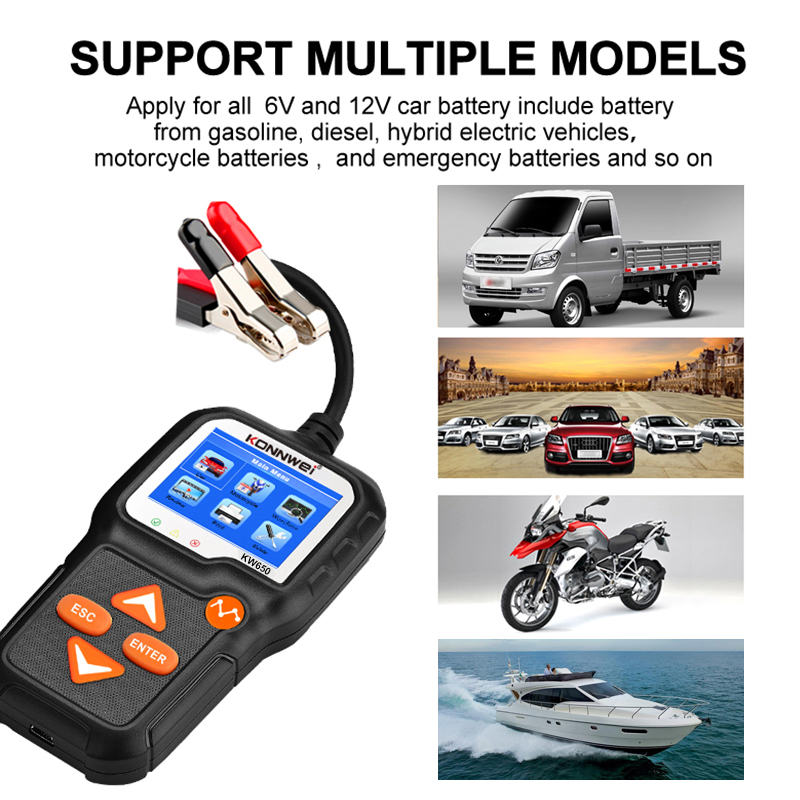

| Application | Widely compatible with 6-16V battery |
| Warranty | 12 months |
Function :
-- System voltage 6-16 Volts and Voltage test in waveform
-- Test Result Good, Recharge or Replace
-- Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
-- Internal resistance value (mΩ) and Life in percentage (%)
-- Cranking system and Charging system
-- Record and re-play battery data, Life-time free update service
-- Battery test, cranking test, charging test and other additional functions.
-- The major battery standards CA, CCA, BCL, MCA, JIS, SAE, EN, DIN and IEC are supported
Multi-Languages: Chinese, English, German, French, Japanese, Korean, Dutch, Russian,
Spanish, Italian, Portuguese, Polish, Persian.
Feature :
Measure Standard, CCA 100-2000, BCI 100-2000, CA 100-2000 , MCA 100-2000,
JIS 26A17-24SH52,DIN 100-1400, IEC 100-1400, EN 100-2000 , SAE 100-2000,
System Voltage 6-16 Volts, Input Voltage Range 6V-16V,
Power Requirements are no internal batteries required, Power on when hooked up during testing.
Package includes:
1*KONNWEI KW650 battery tester
1*Mini USB cable for update and print
1*User’s Manual
1*Color box
